Machine Test Reports Hub
Every straightening machine we ship is proven on real customer parts first. This page is the hub for our machine test reports: customer workpieces are sent in, the required straightness is agreed, and the parts are straightened, measured and video-recorded on the actual machine before any proposal is issued. The featured report below is the original medical drill bit test on this machine family, and the index table lists every test record we have published — medical drill bits, screwdrivers, hex wrenches and round bars, from Ø3.0 mm to Ø8.4 mm and straightness requirements from 0.03 mm to 0.3 mm.
Featured Test Report: Medical Drill Bits Ø4.5 × 115 mm

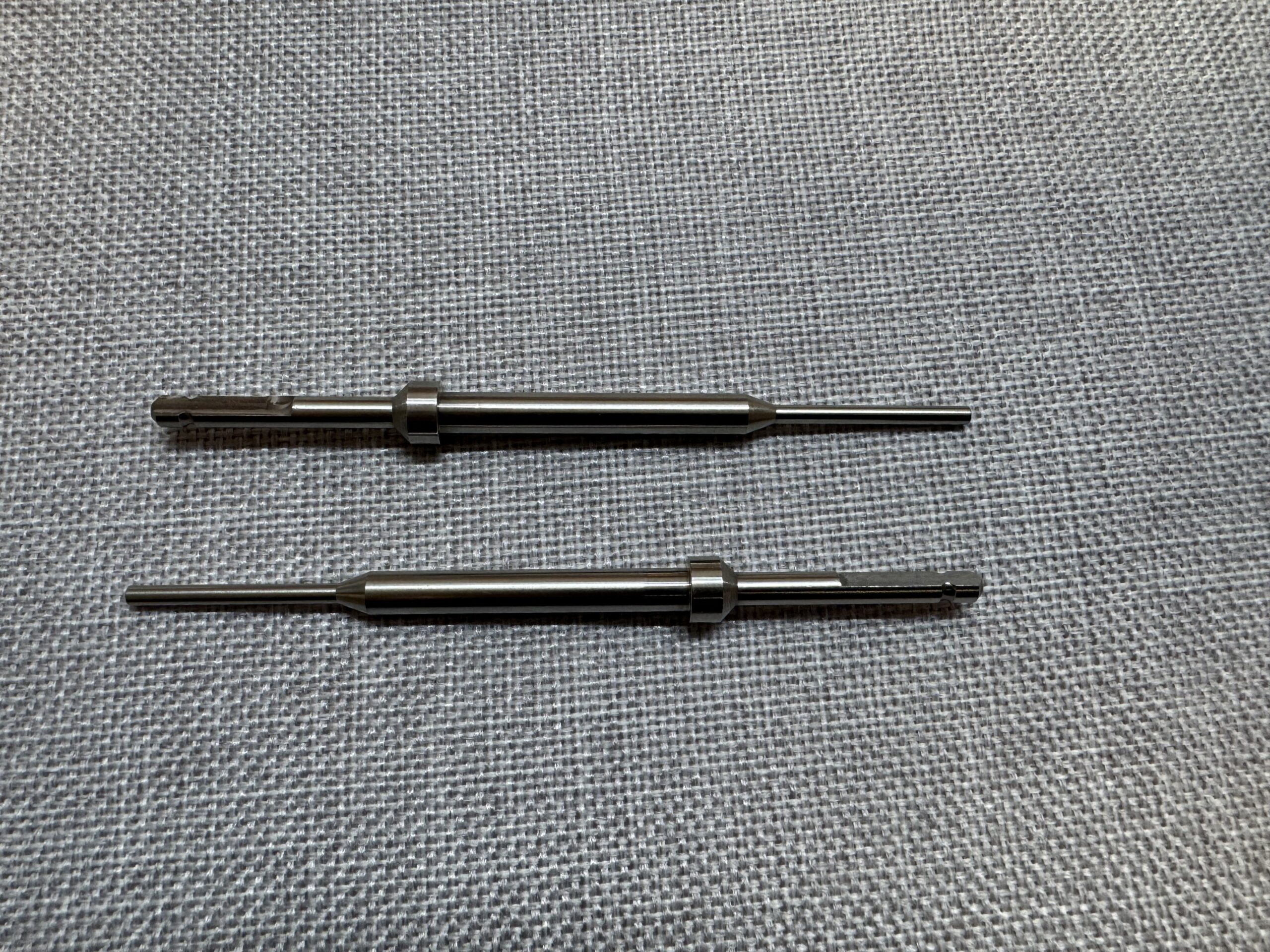

Medical drill bit size: 115mm length and 4.5mm Diameter for the end
Required straightness by the customer: 0.05mm

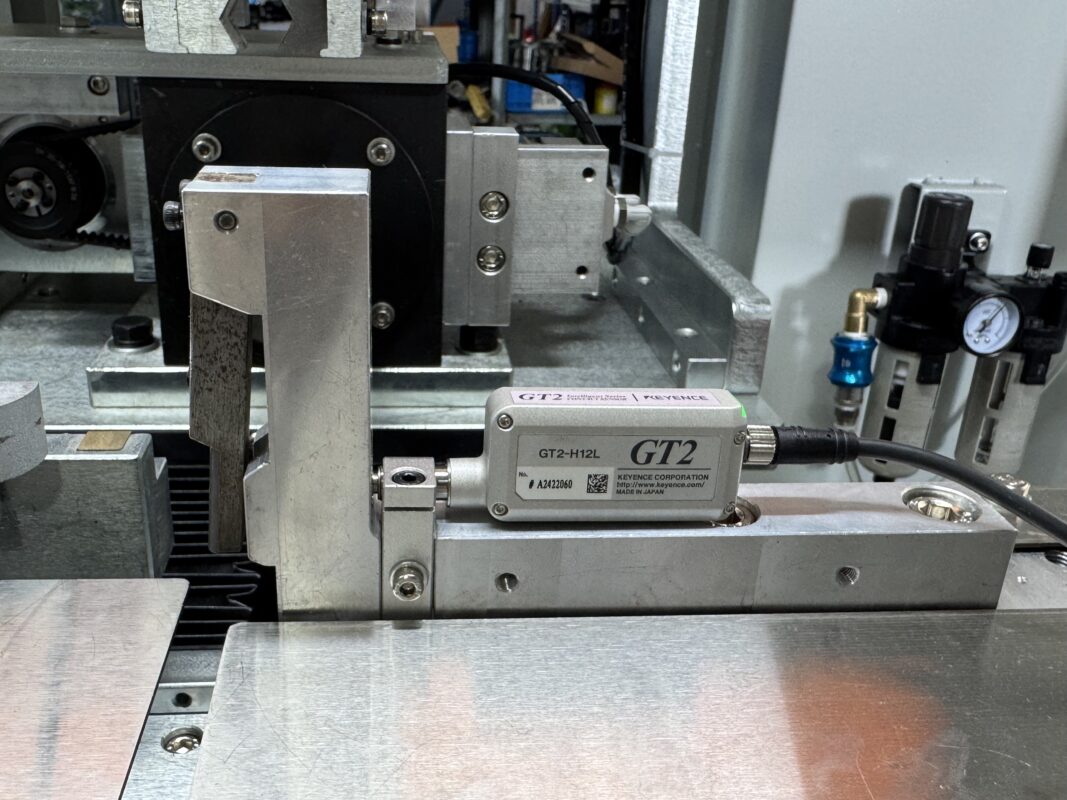

Straightening machine for testing: High-precision machine with the KEYENCE grating ruler

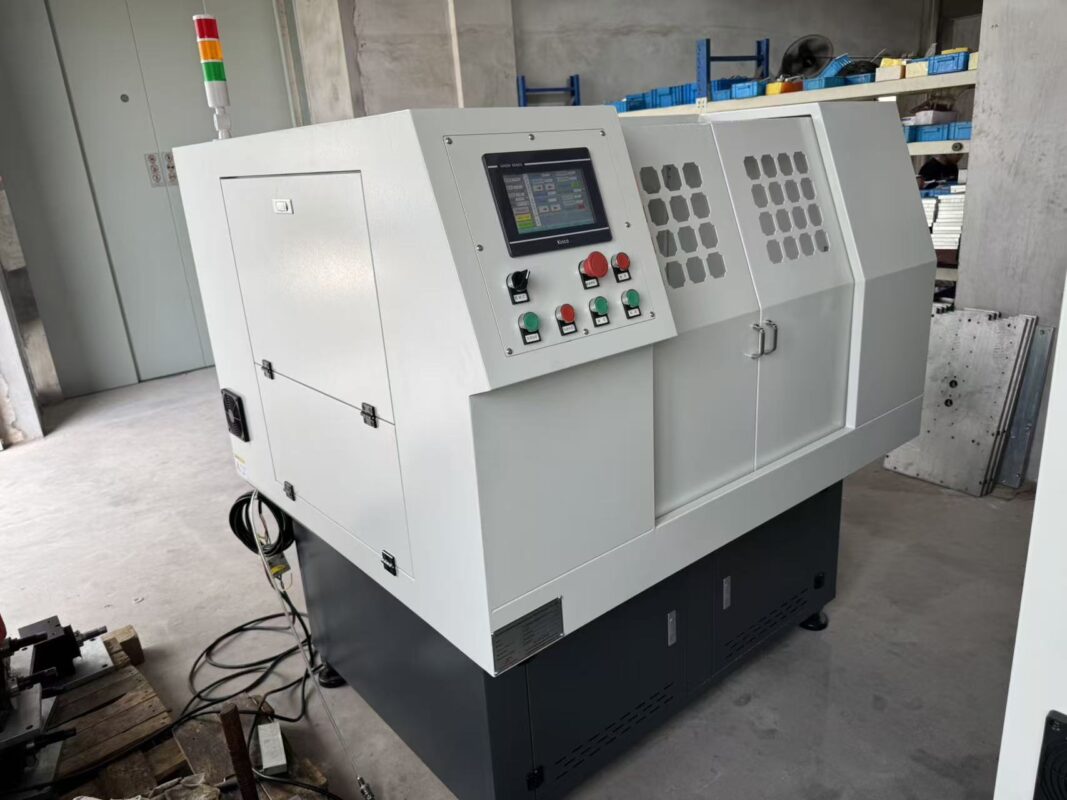

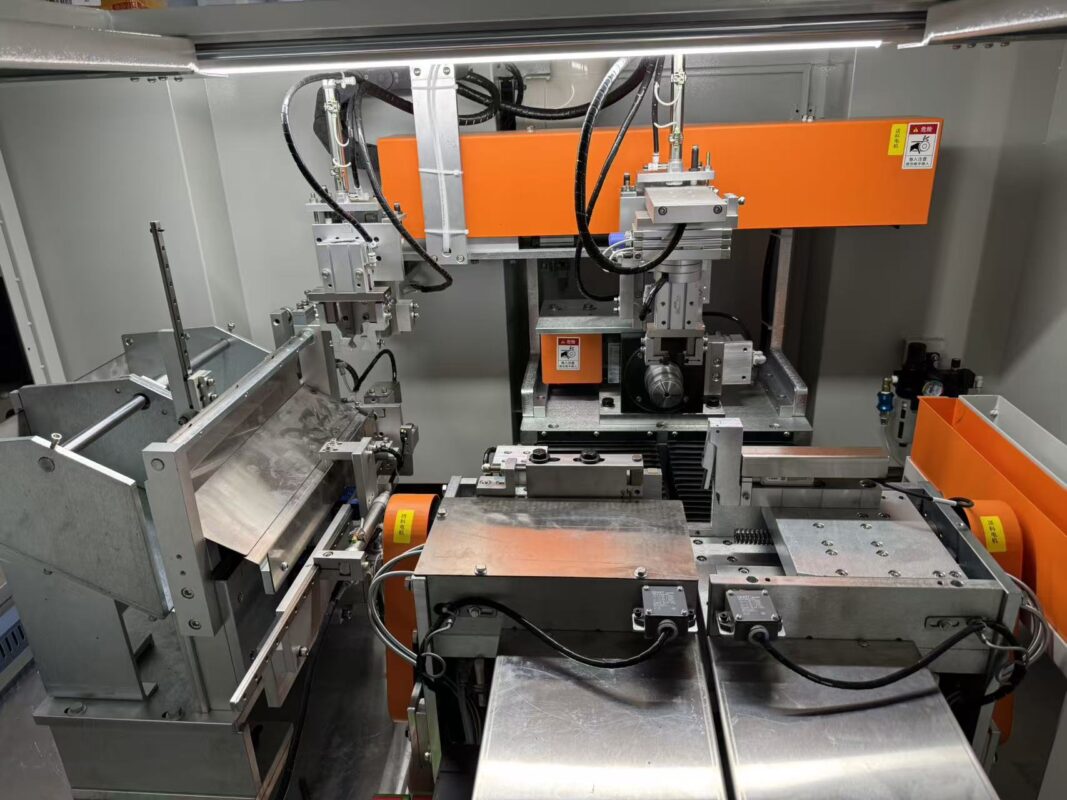

Straightening Machine picture:
This Medical drill bits straightening machine size: L1800mm X W1450mm X 1600mm Weight:910kg
The straightening video is as below:
More information about the Amolin Solution | Straightening Machine | Medical Drill bits, please visit our website: www.straighteningmachinery.com
Machine power: 3 kW, AC220V 50/60 Hz. The high-precision grating ruler resolution is 0.005 mm.
Machine Test Index
All machine test records are indexed below. Each row preserves the workpiece size, the straightness the customer required, the machine used and the test video.
| Date | Workpiece | Size | Required Straightness | Machine & Notes | Video |
|---|---|---|---|---|---|
| 2025-11-08 | Medical drill bit | Ø4.5 × 115 mm | 0.05 mm | High-precision machine with KEYENCE grating ruler; L1800×W1450×H1600, 910 kg, 3 kW, AC220V 50/60 Hz; resolution 0.005 mm | Video 1 / Video 2 |
| 2025-11-10 | Screwdriver | Ø4.0 × 60 mm | 0.10 mm | Test rig L1320×W1150×H1600 | Video 1 |
| 2025-11-10 | Medical drill bit | Ø4.6 × 175 mm | 0.10 mm | AMS-300M (3–8 mm Ø, max 300 mm length), grating ruler | Video 1 |
| 2025-11-10 | Screwdriver | Ø8.0 × 185 mm | 0.10 mm | AMS-300S; 8 mm rod supported during transfer to protect collet life | Video 1 |
| 2025-11-11 | Medical drill bit | Ø4.5 × 250 mm | 0.05 mm | Grating ruler measurement | Video 1 |
| 2025-11-11 | Medical drill bit | Ø3.0 × 165 mm | 0.10 mm | Grating ruler runout measurement | Video 1 |
| 2025-11-11 | Medical drill bit | Ø3.0 × 125 mm | 0.05 mm | Machine L1500×W1300×H1600, 910 kg | Video 1 / Video 2 |
| 2025-11-11 | Medical drill bit | Ø4.5 × 236 mm | 0.05 mm | AMS-300M | Video 1 |
| 2025-11-12 | Medical drill bit | Ø8.0 × 320 mm | 0.10 mm | Grating ruler runout measurement | Video 1 |
| 2025-11-12 | Medical drill bit | Ø8.4 × 265 mm | 0.10 mm | Grating ruler runout measurement | Video 1 |
| 2025-11-12 | Medical drill bit | Ø8.4 × 265 mm | 0.05 mm | Grating ruler runout measurement | Video 1 |
| 2025-11-13 | Medical drill bit | Ø8.0 × 167 mm | 0.05 mm | AMS-300M | Video 1 |
| 2025-11-13 | Medical drill bit | Ø6.0 × 252 mm | 0.10 mm | AMS-300M (max Ø8 mm, 300 mm length) | Video 1 |
| 2025-11-13 | Round bar | Ø8.0 × 250 mm | 0.05 mm | Round-bar test | Video 1 |
| 2025-11-13 | Medical drill bit | Ø4.5 × 225 mm | 0.05 mm | Customer sample test | Video 1 |
| 2025-11-17 | Hex wrench | 4 mm × 150 mm | 0.20 mm | AMS-300C (3–8 mm, max 300 mm) | Video 1 |
| 2025-11-19 | Screwdriver | Ø5.0 × 150 mm | 0.20 mm | AMS-300S (3–8 mm Ø) | Video 1 |
| 2025-11-19 | Medical drill bit | Ø4.5 × 265 mm | 0.10 mm | AMS-300M; full spec: L1800×D1450×H1600, 910 kg, 3 kW, AC220V 50/60 Hz, 0.005 mm resolution | — |
| 2026-03-20 | Screwdriver | — | 0.20 mm | New machine test | Video 1 |
| 2026-05-18 | Medical drill bit | Ø6.0 × 160 mm | 0.03 mm | AMS-300 with grating ruler | Video 1 |
| 2026-05-20 | Medical drill bit | Ø6.0 × 110 mm | 0.30 mm | AMS-300; 15 samples processed, all within 0.3 mm max run-out, positive customer feedback | Video 1 |
