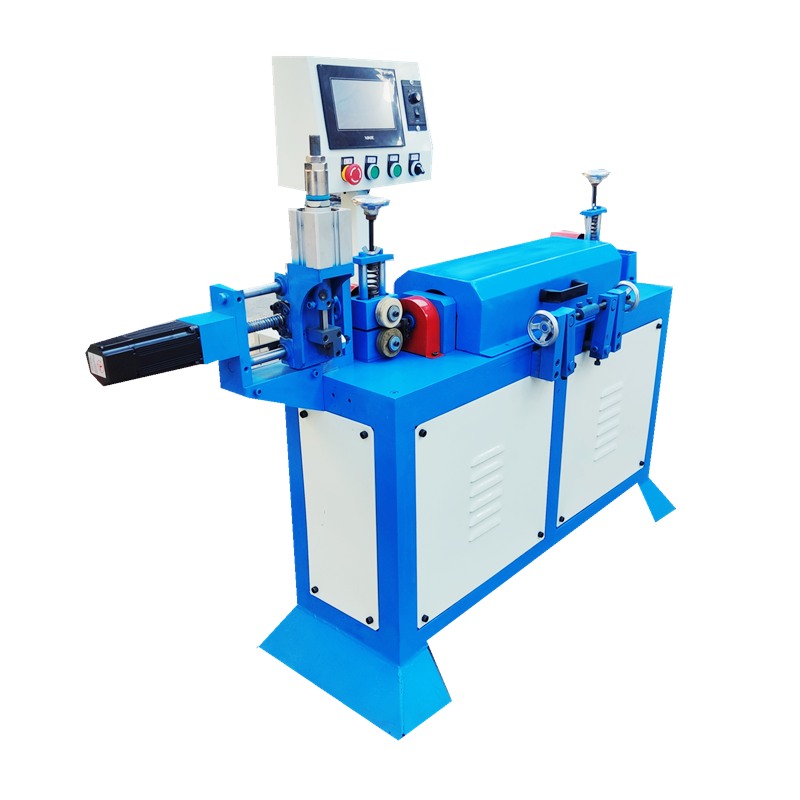

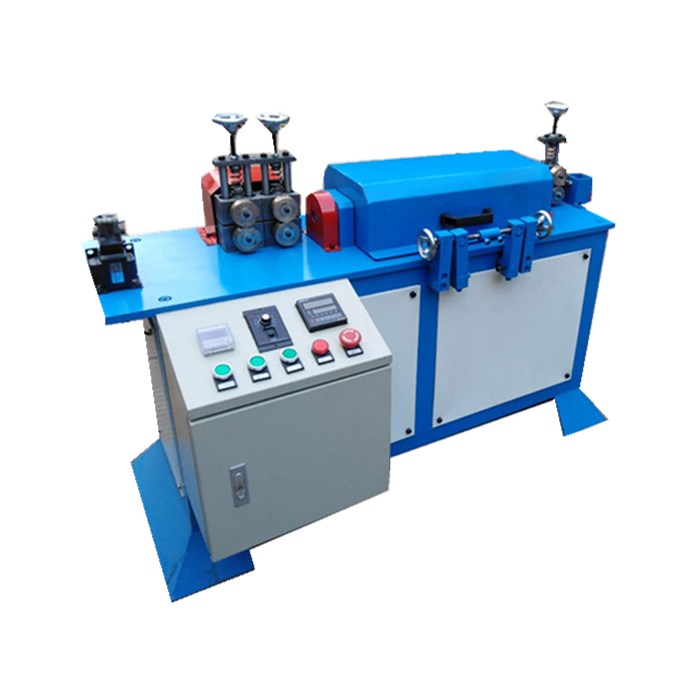

Low-cost Wire Straightening Machine
Low-cost Wire Straightening Machine
This Low-cost Wire Straightener is with all new design and it has several patented technologies. It is widely used in medical equipment, aerospace, precision instruments, automotive parts, electronic and electrical industries and so on.
We can provide the straightening machine with CE standard and also with the high automation technique such as remote diagnosis and production management.
The Character Of Low-cost Wire Straightening Machine
Note: The hollow wire (or the tube ) is not suitable for this low-cost wire straightening machine
Specification Of Low-cost Wire Straightening Machine
| Model | AMXP-0108 | AMXP-0515 | AMXP-0820 | AMXP-1025 | AMXP-2550 | AMXP-5090 | AMXP-1216 |
|---|---|---|---|---|---|---|---|
| Wire Diameter | 0.1-0.8mm | 0.5-1.5mm | 0.8-2.0mm | 1.0-2.5mm | 2.5-5.0mm | 5.0-9.0mm | 9.0-12mm |
| Line speed | 6-30M/min | 6-30M/min | 6-30M/min | 10-40M/min | 10-40M/min | 10-40M/min | 10-40M/min |
| Straightness | 0.08mm/M | 0.08mm/M | 0.08mm/M | 0.08mm/M | 0.08mm/M | 0.08mm/M | 0.08mm/M |
| Length Tolerance | +/-0.2mm | +/-0.2mm | +/-0.2mm | +/-0.2mm | +/-0.2mm | +/-0.2mm | +/-0.2mm |
| Rated Power | 3kw | 3kw | 4kw | 4kw | 4Kw | 5.5kw | 5.5kw |
| Power Supply | 220V/400V/50HZ/60HZ/3P+N+E | ||||||
Who the Low-Cost Wire Straightener Is For
Not every wire processing application needs the tightest specification on the floor. General wire products, standard cut lengths and pre-processing for further drawing all need straight, stable stock — at a proportionate investment. The low-cost wire straightening machine covers exactly that case: a complete through-feed line consisting of the straightener and the uncoiler, with the uncoiler driven by its own motor so coil pay-off and correction run as one steady process.
Its all-new design carries several patented technologies, and the machine is applied across the same industrial span as the program at large — medical equipment, aerospace, precision instruments, automotive parts, and the electronic and electrical industries — wherever the straightness specification is standard rather than extreme. CE-standard builds and high automation options such as remote diagnosis and production management are available on this line as well.
When the choice between this and the high-performance precision straightener is not obvious from the specification alone, send the wire parameters and tolerance — we match the line to the part, not the other way round.
