Drill Pipe Straightening Machine

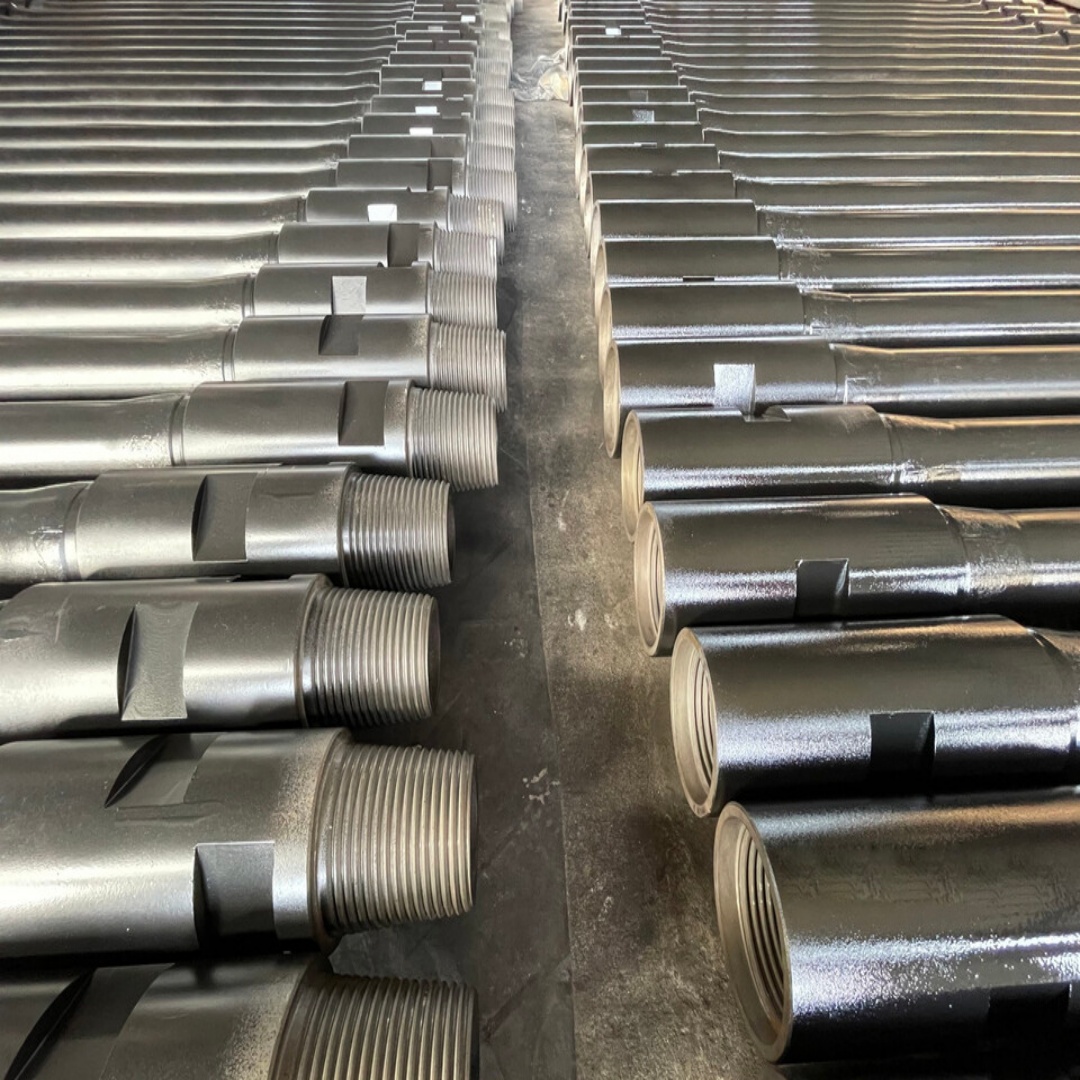

A drill pipe is the most heavily loaded tubular component in a drilling string. Every joint transmits torque, axial load and bending stress downhole, so even a small residual bend concentrates stress at the tool joints and accelerates fatigue failure. Our drill pipe straightening machine restores bent pipes to the straightness required for further service or reconditioning, with closed-loop measurement before and after every pressing cycle. Drill pipe straightening machines can be provided for the full range of oil-country tubular workpieces, from individual joints to full reconditioning lines.
Drill Pipe straightening machine can be provided
Why Drill Pipes Need Straightening
Pipes usually leave the mill straight, but they rarely stay that way. Bending is induced by heat treatment of the tool joints, repeated make-up and break-out torque, stacking and rolling in the pipe yard, and dog-leg service downhole. Straightening is therefore a standard step in the reconditioning workflow: bent joints are measured, pressed, remeasured, and either returned to service or rejected against the applicable limits.
Replacing a hardened and threaded drill pipe joint costs far more than re-straightening it. As long as the body wall is within wear limits and no cracks are present, a bent joint is an economic reconditioning candidate. Crack detection should always precede pressing, because a fatigue crack can propagate during straightening and fail later in service.
Workpiece Range This Machine Covers
This machine is suitable for rod straightening, shaft straightening, drill pipe straightening, steel pipe straightening and bar straightening. It is especially suitable for drill pipe straightening, where the combination of long length, high stiffness and strict acceptance limits demands a machine-verified process rather than manual correction.
How the Press Straightening Cycle Works
Each pipe is rotated between centers or supports while displacement sensors record the runout profile along the workpiece. The control system locates the bend magnitude and direction at every measurement point, then presses at the calculated position and depth. After each press the system remeasures, and the cycle repeats until every point is inside the programmed straightness tolerance. This closed loop is what separates a machine-verified pipe from a hand-straightened one: the result is documented, repeatable and independent of operator skill.
Straightening Acceptance and Standards
For oil-country tubulars, acceptance is not a matter of visual judgment. Straightness is defined against published limits that depend on the pipe grade and the section concerned. If you are specifying a machine, it is worth reviewing the API drill pipe straightness standards first, because the measurement method in the standard determines what your machine must be able to prove. The interaction between material grade and press force is covered in drill pipe grades and straightening requirements, and the complete sequence from incoming inspection to final dimensional control is described in the drill pipe reconditioning workflow. Related tubular applications are summarized under OCTG straightening.
Machine Photos
Machine Videos
Machine video:
What to Prepare for a Drill Pipe Trial
A trial answers one question: can this machine hold the required straightness on your pipes, repeatably. To make it meaningful, send the pipe drawings with material grade, outside diameter, wall thickness and length; the required straightness and the gauge length over which it applies; the current bend distribution if you have measured it; and the upstream and downstream processes, because a pipe that will be welded, machined or coated after straightening may need a tighter margin than the drawing alone suggests. Sample pipes from your actual production are always better than new stock, because they carry the real bend patterns the machine has to correct.
To discuss a drill pipe straightening application, send the pipe drawings and required straightness to our engineering team for a technical proposal and trial straightening.
